Olecranon hook locking plate - Placa LCP de gancho 3.5mm para olecranon perone
For ulna olecranon fracture, and distal fibular avulsion fracture - Para fractura de cúbito olécranon y fractura por avulsión distal del peroné

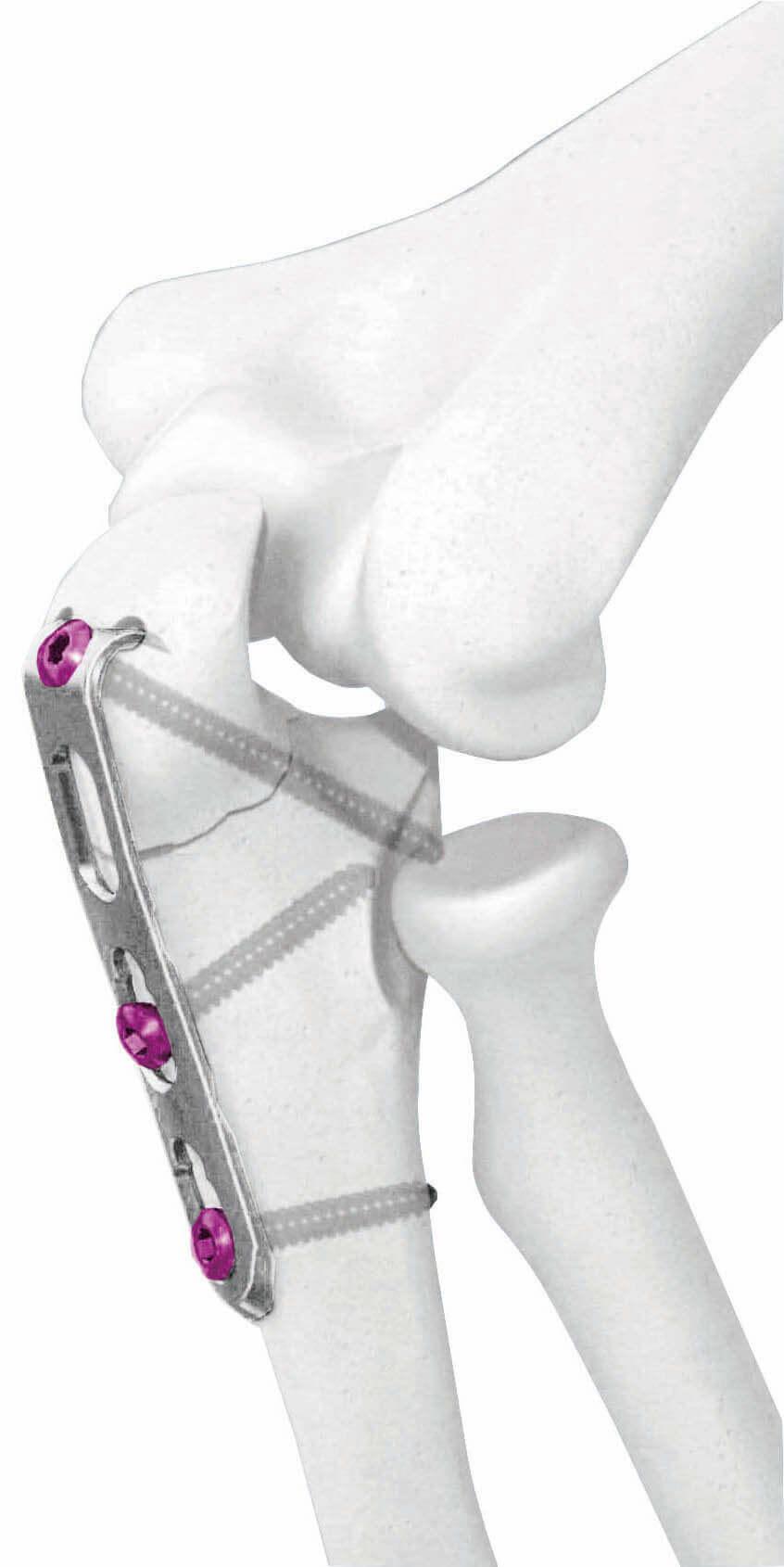

Olecranon Hook Locking Plate is designed for fractures involving the olecranon process of the ulna. The "hook" refers to a part of the plate that engages with the olecranon, providing additional stability.
It's also used for Distal Fibular Avulsion Fracture.The plate as well has applications in the treatment of distal fibular avulsion fractures. These fractures often involve the detachment of a bony fragment due to the pull of a tendon or ligament.
HA3.5 Locking Screws: The use of HA3.5 locking screws indicates that screws with a diameter of 3.5 millimeters and locking capabilities are used. Locking screws provide stability by locking into the plate, reducing the risk of screw loosening.
Surgical Technique: Surgeons would use this locking plate in accordance with established orthopedic surgical techniques for the specific fractures it is designed to address. The plate is secured to the bone using the locking screws.
Clinical Applications: The olecranon hook locking plate is used to stabilize fractures in the ulna olecranon or distal fibular avulsion fractures. The goal is to achieve stable fixation, promote bone healing, and allow for early mobilization.
Anatomic design & Low profile
• No bending required
• May minimize soft tissue irritation
• Low risk of subacromial impingement
• A displaced fracture can be reduced using the plate
• For ulna olecranon fracture, and distal fibular fracture
Holes：3 / 4 / 5
Length: 62 / 80 / 98
HA3.5 Cortical Screws、HB4.0 Cancellous Screws, HA3.5 Locking Screws
